Product Overview
• Back adhesive encapsulation for the lower layer of artificial graphite sheet;
• Underlayer adhesive for ferrite materials, NFC, wave-absorbing materials, etc;
• Adhesion and fixation of PEEK acoustic film；
• For mobile devices such as mobile phones, reflective and other functional films used in LCD backlight modules in display devices are fixed and adhered.
Product Features
• Precise coating control technology ensures stable product thickness and mechanical properties;
• Ultra-thin polyester film is used as the substrate, enabling the realization of ultra-thin double-sided adhesive;
• The product features thin coating and high viscosity, along with good processability, meeting the lightweight and thin requirements of customers' end products;

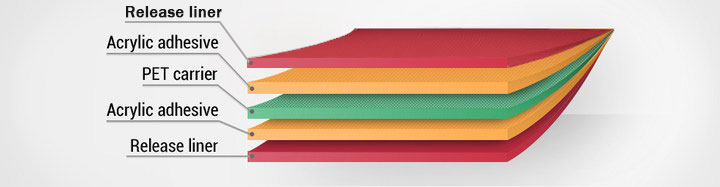

product structure
Product Series
| Product P/N | Total Thickness | Type | Carrier | 180° Peel Strength | Color | Adhesive Type | Feature/Application |
| (μm/mil) | (N/25mm,SUS) | ||||||
| 221003T | 3（0.188） | Double-sided | Polyester Film | ≥3 | Clear | Acrylic | Lower thermal or electronic resistance by thin thickness and used in graphite, NFC antenna and small LCDs,backlight module components, FPC and others of smart phones. |
| 221003B | 3（0.188） | Double-sided | Polyester Film | ≥2 | Black | ||
| 221005T | 5（0.197） | Double-sided | Polyester Film | ≥5 | Clear | ||
| 221010T | 10（0.394） | Double-sided | Polyester Film | ≥10 | Clear | ||
| 221010B | 10（0.394） | Double-sided | Polyester Film | ≥10 | Black | ||
| 221015T | 15（0.591） | Double-sided | Polyester Film | ≥10 | Clear | ||
| 221015B | 15（0.591） | Double-sided | Polyester Film | ≥10 | Black | ||
| 221020T | 20（0.787） | Double-sided | Polyester Film | ≥12 | Clear | ||
| 221020B | 20（0.787） | Double-sided | Polyester Film | ≥12 | Black | ||
| 221030T | 30（1.18） | Double-sided | Polyester Film | ≥13 | Clear | ||
| 221030B | 30（1.18） | Double-sided | Polyester Film | ≥13 | Black | ||
| 221040T | 40（1.57） | Double-sided | Polyester Film | ≥14 | Clear | ||
| 221040B | 40（1.57） | Double-sided | Polyester Film | ≥13 | Black | ||
| 221050T | 50（1.97） | Double-sided | Polyester Film | ≥15 | Clear | ||
| 221050B | 50（1.97） | Double-sided | Polyester Film | ≥15 | Black | ||
| 101002T | 2（0.0787） | Double-sided | None | ≥3 | Clear | Acrylic | Ultra-thin thickness and has good adhesive strength to both high and low surface energy objects |
| 101004T | 4（0.157） | Double-sided | None | ≥7 | Clear | Acrylic | |
| 101010T | 10（0.394） | Double-sided | None | ≥10 | Clear | Acrylic | |
| 101015T | 15（0.591） | Double-sided | None | ≥13 | Clear | Acrylic | |
| 101007TC | 7（0.276） | Double-sided | None | ≥7 | Clear | Conductive Acrylic | Ultra-thin thickness, good peel strength and extremely low electrical resistance |
If you require products with other physical properties or specifications, or customized products, please feel free to contact us.
